Era SL Wheel Explained
Era SL Wheel Explained
What makes Era SL the definitive downcountry wheel?
Get Racing.
Get Rowdy.
Compliance In The Vault
Long Live Downcountry.
Not your typical XC race wheel. Not a strength-forward Enduro wheel. Era SL is the happy medium, designed specifically for the mass of riders who sit happily in between. Era SL is built for Downcountry. Lifetime Warranty, crashes included.

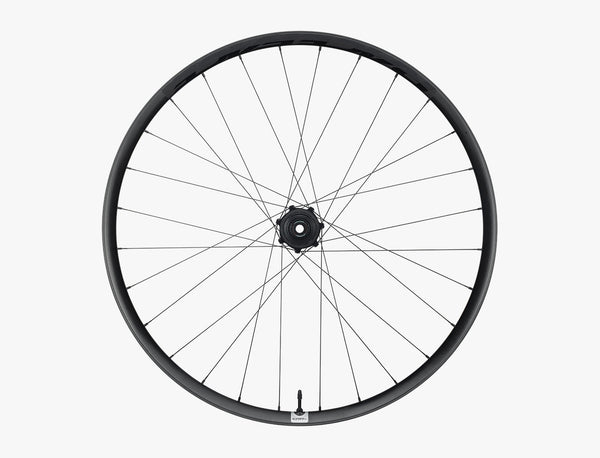

Era SL Wheels
Rider Style
Specs
| Color | Black |
| Includes | 5 extra spokes included with rear wheels |
| Material | Carbon Fiber |
| Nipples | Black alloy nipples |
| Int Rim Width | 29mm |
| Rotor Mount | 6-bolt and Centerlock options available |
| Front Hub Model | 15x110 Boost – Vault 415 |
| Front Hub Endcap Compatibility | Vault 415 hub – 15x110 Boost (F60100) / 15x110 Boost Torque Cap (F60122) |
| Rear Hub Model | 12x148 Boost – Vault 424 12x157 Super Boost – Vault 422 |
| Rear Hub Endcap Compatibility | Vault 424 – 12x148 Boost (F60063) Vault 422 – 12x157 Super Boost (F60063) / 12x150 (F60066) |
| Spoke Offset | 3mm |
| Tubeless | Tubeless ready, taped with valve |
| Weight | 29" CL - 1494g / 29" 6-bolt - 1530g |
| Weight Conditions | Wheelset without tape or valves |
| System Weight Rating | 130kg (286 lbs) |
| eMTB Usage Rating | 6-bolt - 65Nm of Torque / CL - not eMTB approved |
| Spoke Length 29" | Front: 303mm, Rear: 303mm |
| Spokes | Straight Pull, 28 hole, 3x lacing, 2.0/1.5/2.0 Butting |
| Max Rear Wheel Travel | 140mm |
Frequently asked questions
What is the maximum recommended tire size?
The Era SL wheels are built with a versatile 29mm internal rim width, which is designed to optimize performance for a broad range of tires.
This width safely and effectively accommodates tire sizes up to 2.6 inches.
Running tires in this range allows you to leverage the rim’s structure to support low-pressure, high-traction setups, resulting in:
- Superior Traction: Maximizing grip on technical and varied terrain.
- Enhanced Stability: Providing excellent support for the tire sidewalls, even during hard cornering.
- Reduced Fatigue: Helping to smooth out trail chatter and bumps.
What is the total system weight capacity?
The system weight rating for the Era SL Wheels is 130 kg (286 lbs). This rating includes the combined weight of the rider, the bike, and any accompanying gear.
Are these wheels tubeless ready?
Yes, the Era SL wheels are tubeless ready and come taped with a valve, making setup straightforward.
What is the weight of the Era SL carbon rim?
The Era SL features the lightest carbon rim Race Face has ever produced, minimizing rotational mass to maximize quick acceleration and efficient climbing performance.
- The Era SL carbon rim weighs just 385 grams (without tape or valve).
This low weight is a key factor in balancing the wheel’s XC speed capabilities with the required durability for aggressive Trail riding.
Do these wheels help reduce rider fatigue?
Yes, the Era SL wheelset is specifically engineered to improve ride quality and reduce fatigue, making it suitable for aggressive trail riding and long-distance XC racing.
This benefit is achieved through the wheel’s design for balanced compliance:
- Lateral Compliance: The wheels are engineered for specific lateral compliance, allowing them to effectively absorb high-frequency trail vibrations and smooth out small bumps.
- Rider Comfort: By minimizing the vibration transmitted to the rider, fatigue is reduced over rough or long rides.
- Efficiency: This compliance is achieved while retaining the high level of XC pedal efficiency expected of a performance wheel.
Is this wheel designed for versatile riding styles?
Yes, the Era SL wheel is specifically engineered to bridge the gap between different mountain biking disciplines. It is designed for the rider who wants a balanced wheel that is not strictly for XC racing nor purely for heavy-duty Enduro riding. This makes it an ideal choice for:
- Hybrid performance: Perfectly suited for trail riders who value both climbing efficiency and rugged durability.
- Optimized handling: Provides a ‘happy medium’ in terms of stiffness and compliance, ensuring reliability across a wide range of terrain.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
