Going back to Race Face's roots, the bomb-proof Atlas wheelset is made for mastering the gnarliest DH lines, floating through rock gardens, and sending the sickest booters. Mount up and hold on for the ride.

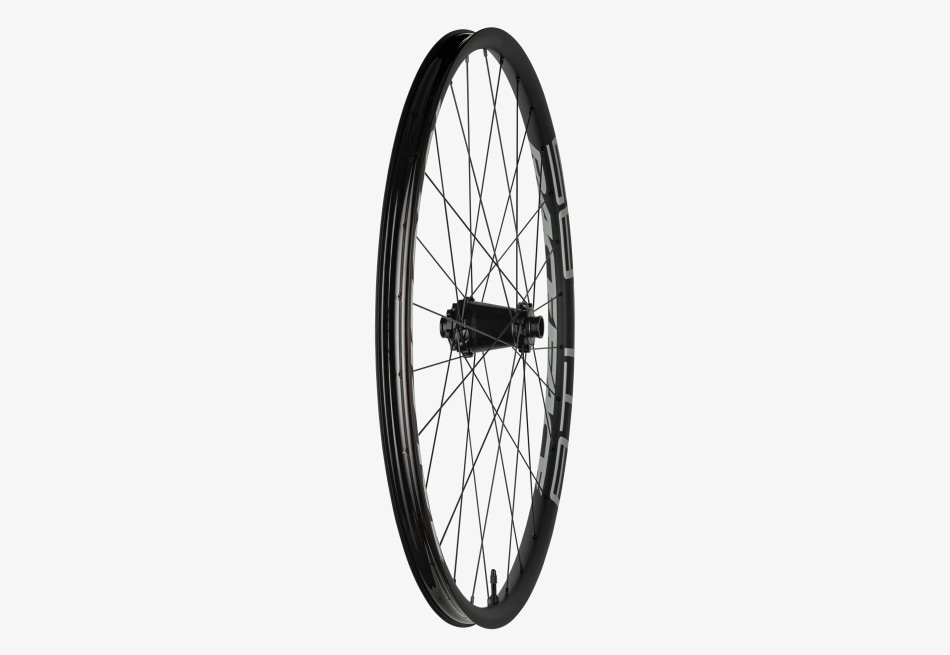

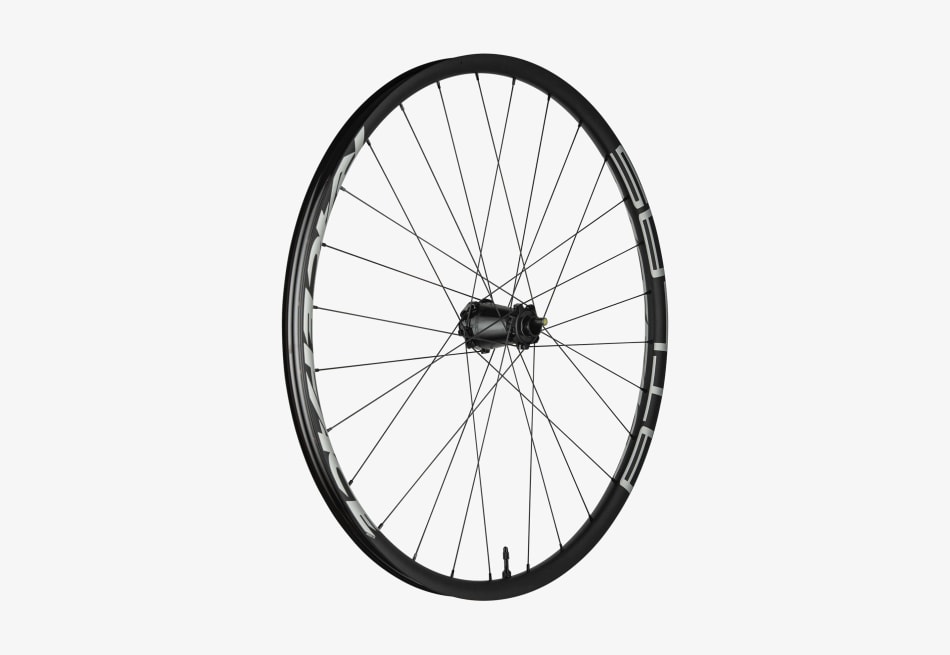

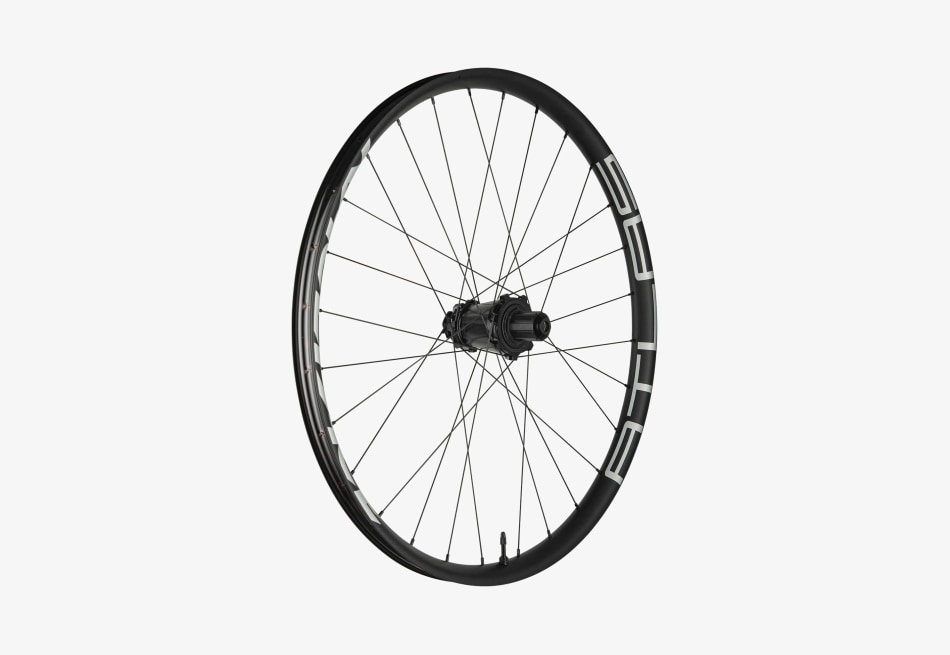

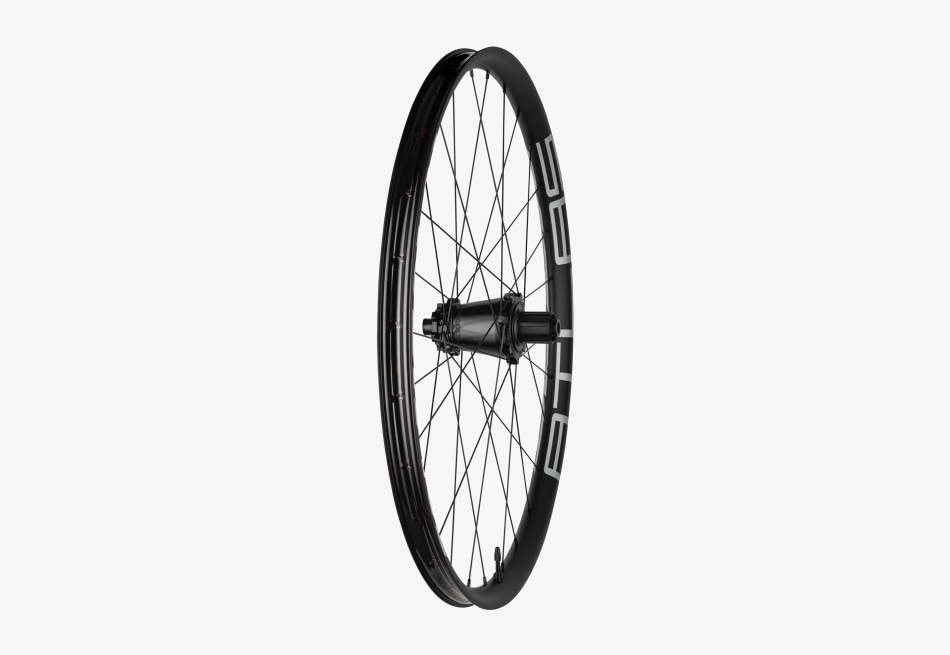

Atlas Wheels
Rider Style
Specs
| Color | Black |
| Includes | 5 extra spokes included with rear wheels 20 x 110 Boost Front Wheels come with endcaps installed for 20mm axle, but include 15mm axle conversion endcaps as spares. All 12 x 150/157 Rear wheels come with hub endcaps installed for 12 x 157 configurations. Endcaps for 12 x 150 configurations included as spares. |
| Material | Aluminum 6069 |
| Nipples | Black alloy nipples |
| Ext Rim Width | 34 mm |
| Int Rim Width | 30 mm |
| Spoke Butting | 2.0/1.8/2.0 |
| Spoke Count | 28 |
| Spoke Head Type | Straight pull |
| Spoke Lacing | 3X |
| Spoke Offset | 4.5 mm |
| Tubeless | Tubeless ready |
| Weight | 1950 g (27.5"), 2044 g (29") |
| Weight Conditions | Wheelset |
| Spoke Length Front & Rear | 282mm (27.5"), 301mm (29") |
Frequently asked questions
Does the wheel include axle conversion endcaps?
Yes, depending on your selected configuration, the Atlas wheels include specific adapters to help with compatibility:
- 20 × 110 mm Boost front wheels: These come with 20 mm endcaps installed and include a set of 15 mm conversion endcaps.
- 12 × 150/157 mm rear wheels: These are supplied with 157 mm endcaps installed and include 150 mm endcaps as spares.
Please ensure you verify your frame’s specific axle spacing and freehub requirements before purchasing to confirm the compatibility of your chosen model.
Is this wheelset tubeless ready?
Yes, the Atlas wheelset is designed to be Tubeless Ready.
This compatibility provides modern performance advantages, enabling a more reliable setup suitable for demanding disciplines such as All Mountain, E-Bike, Gravity, and Trail riding.
Are 27.5 and 29 inch wheel sizes available?
Yes, the Atlas wheelset is available in both 27.5-inch and 29-inch diameters, catering to various bike setups and riding preferences. Both sizes feature the durable 6069 Aluminum rim construction and the high-performance Vault hub.
| Wheel Size | Wheelset Weight |
|---|---|
| 27.5 inches | 1950g |
| 29 inches | 2044g |
Which rear freehub options are available?
Depending on your specific bicycle drivetrain, the Atlas rear wheels are available with HG, XD, and Micro Spline (MS) freehub body configurations. Please double-check your cassette compatibility before finalizing your order to ensure the correct fit.

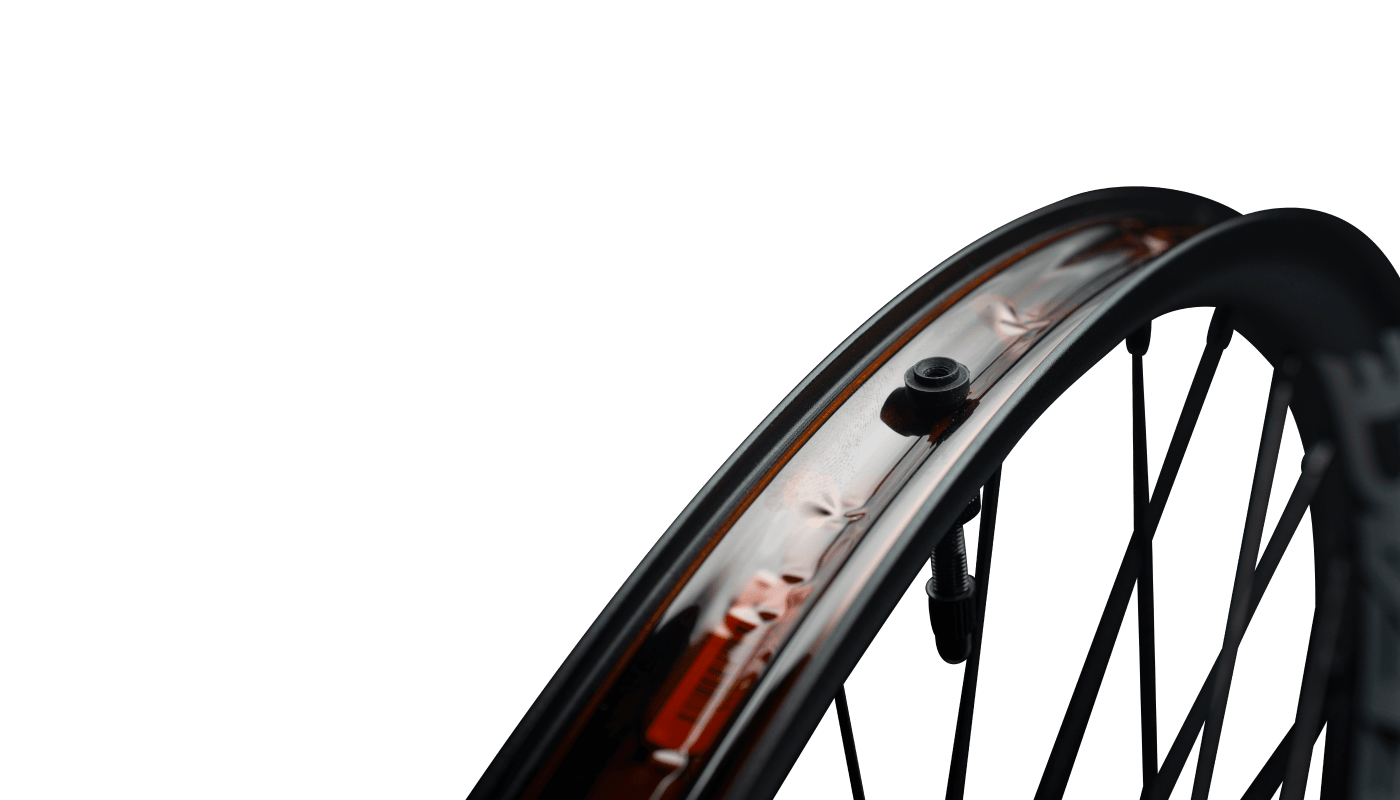

Is durable 6069 aluminum used for the rim?
Yes, the Atlas wheel rim is constructed from robust 6069 Aluminum.
This material choice is key to the wheelset’s “bomb-proof” durability, as it is specifically engineered with a dent and flat resistant bead design, allowing it to withstand aggressive riding styles like Gravity and Downhill.
What is the internal rim width?
The Atlas wheels feature a wide, robust rim profile specifically engineered for aggressive riding and optimal tire support:
- Internal Rim Width: 30 mm
- External Rim Width: 34 mm
This 30 mm internal width is designed to provide exceptional support and enhance lateral stability for modern wider tires, which is essential for demanding disciplines like Gravity and All Mountain riding. The rim is built from high-grade 6069 Aluminum alloy, featuring a dent and flat resistant bead design for maximum durability.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
